Execution and Characteristic：
Edge utilizing propelled programmed processing, height exactness. Additional profundity zinc covering frame, corrosion resistance strong and high-quality aluminum amalgam throwing wheel, the sensible point of view of the type, is to achieve the most extreme airflow. High-exactness scale PC helps assemble a framework to make the best of it.

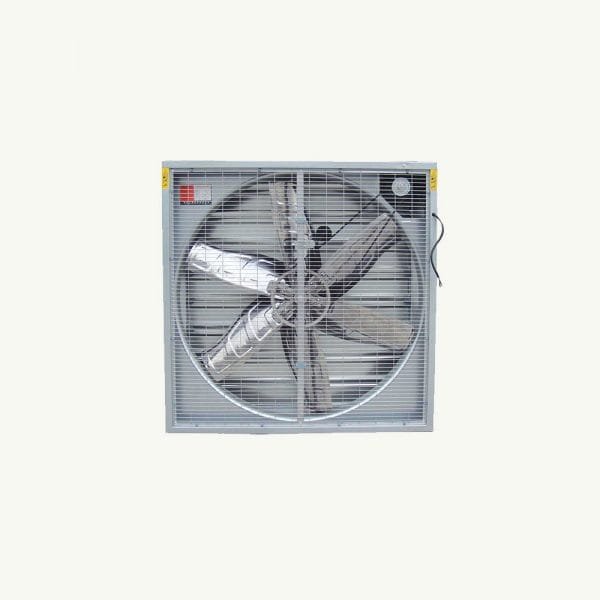

MST Heavy Hammer type Exhaust Fan Description:
Products Features:
- Fan Frame: made from highly galvanized steel sheets to ensure the highest strength and strong corrosion resistance.
2) Blade: 6 pieces of stainless steel blades and the fan have all passed the experiment of homeostasis with big air volume, without deformation, no breaking, attractive and durable.
3) Belt Pulley: The V-type belt pulley is aluminum-magnesium alloy injection molded, lightweight, and high-strength.
4) Bearing: France imported bearings, with high intensity, low noise, and long service life.
| Model specifications | Diameter blades- mm | Blades rotational speed- rpm | Motor rotational speed- rpm | Airflow m3/h | Total pressure-Pa | Noise decibels | Import power- W | Rated voltage- V | High mm | Width mm | Thick mm |
| MST(c)-620 | 500 | 1400 | 1400 | 5700 | 55 | ≤70 | 250 | 380 | 620 | 620 | 400 |
| MST(c)-780 | 710 | 650 | 1400 | 18000 | 60 | ≤60 | 370 | 380 | 780 | 780 | 400 |
| MST(c)-800 | 720 | 660 | 1400 | 20000 | 60 | ≤60 | 550 | 380 | 800 | 800 | 400 |
| MST(c)-900 | 750 | 630 | 1400 | 22000 | 65 | ≤65 | 550 | 380 | 900 | 900 | 400 |
| MST(c)-1000 | 900 | 610 | 1400 | 25000 | 70 | ≤70 | 750 | 380 | 1000 | 1000 | 400 |
| MST(c)-1100 | 1000 | 600 | 1400 | 32500 | 70 | ≤70 | 750 | 380 | 1100 | 1100 | 400 |
| MST(c)-1220 | 1100 | 460 | 1400 | 38000 | 73 | ≤70 | 750 | 380 | 1220 | 1220 | 400 |
| MST(c)-1380 | 1270 | 439 | 1400 | 44000 | 56 | ≤70 | 1100 | 380 | 1380 | 1380 | 400 |
| MST(c)-1530 | 1400 | 325 | 1400 | 55800 | 60 | ≤70 | 1500 | 380 | 1530 | 1530 | 400 |
Now you can easily buy Heavy Hammer Type Exhaust Fan at your nearby places at a cheap price. Visit the website to know more in detail about the Exhaust Fan price in Chittagong and the Exhaust Fan price in Bangladesh. You can also order online from the Maa Steel Technology Company Website.
